Designing a system that handles thousands of ecommerce orders per second is a classic system design interview question. In a traditional database-driven approach, heavy read/write operations on a single database can create bottlenecks and lead to data loss during traffic spikes.

By leveraging Apache Kafka, we can build an asynchronous, decoupled, event-driven order processing system that is highly scalable and fault-tolerant.

Architecture diagram of a Kafka-based order processing pipeline
Real-World Analogy: A Busy Restaurant Kitchen

Imagine a bustling restaurant kitchen handling hundreds of orders on a Friday night:

Waiters do not run directly into the kitchen to scream orders at individual chefs. Instead, they write orders on slips and place them on a **central ticket carousel wheel (the "orders" topic)**.

A **validation chef** reviews the tickets to ensure the kitchen has the ingredients (inventory check). Approved tickets get stamped and placed on the **prep counter (the "orders-validated" topic)**. From there, separate prep chefs (consumers) slice vegetables, grill meat, and plate the final dishes (the "orders-fulfilled" topic) in parallel.

High-Level Architecture

A robust order processing system is composed of several independent stages connected via Kafka topics:

1. Topics & Partitioning Strategy

  • orders (raw): Receives newly placed orders from the public API Gateway.
  • orders-validated: Holds validated orders ready for payment and shipment processing.
  • orders-fulfilled: Stash of successfully processed and paid orders.
  • orders-dlq: Holds malformed or invalid orders for debugging.
  • Partitioning Key: Use customerId or orderId. Using customerId ensures all orders placed by the same user are processed sequentially on the same partition. Assign **12 to 24 partitions** to allow scaling consumer groups up to 12–24 parallel instances.

2. Safe Producers

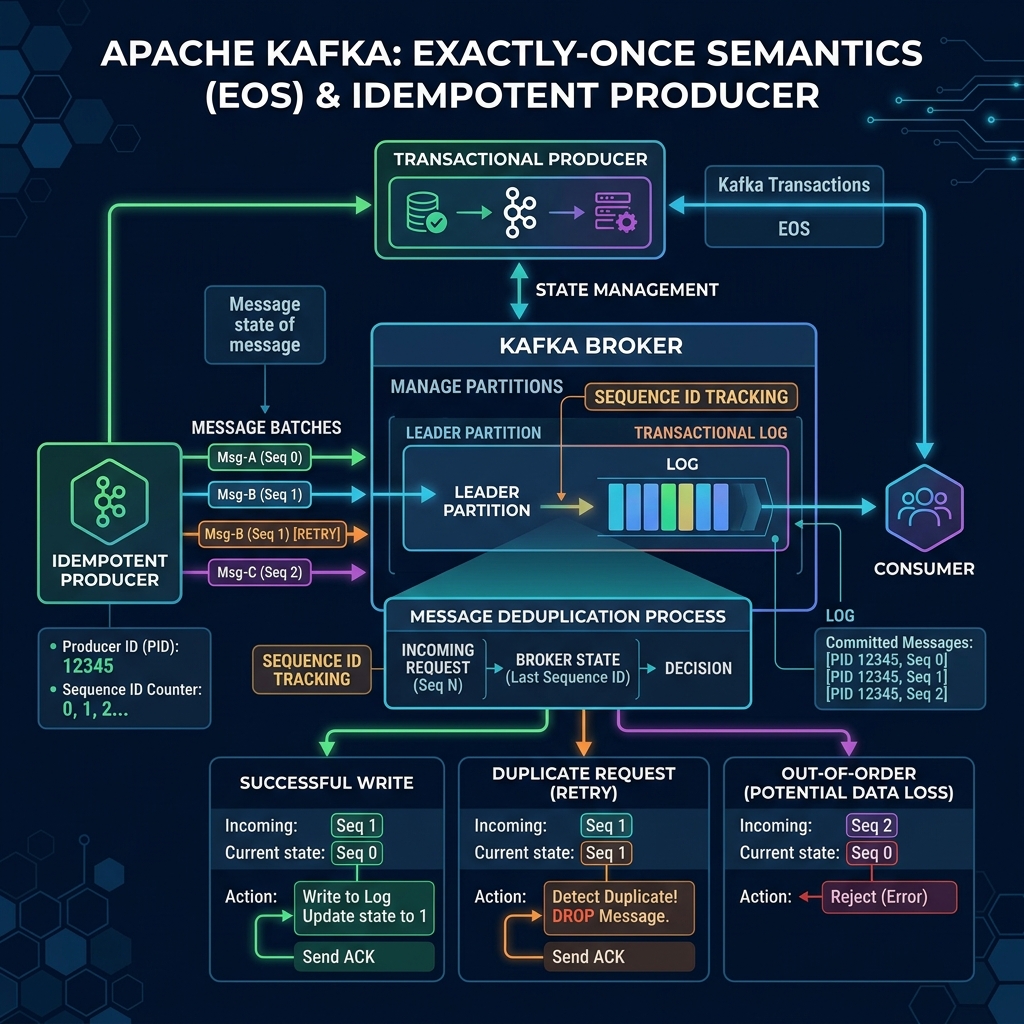

The Order API service must write messages to the orders topic safely. Enable idempotency and all-replica confirmations to prevent double-charging or losing orders:

# Producer Properties
bootstrap.servers=localhost:9092
acks=all
enable.idempotence=true
retries=2147483647
max.in.flight.requests.per.connection=5

3. Processing Pipeline (Consumers)

  • Validation Microservice: Subscribes to the raw orders topic, verifies item availability and customer accounts, and writes to orders-validated. If validation fails, it routes the message to orders-dlq.
  • Fulfillment & Payment Microservice: Subscribes to orders-validated, calls the external payment gateway, charges the customer, and publishes the result to orders-fulfilled.

Type Safety with Schema Registry

To avoid bad data corrupting your downstream microservices, use **Avro Schemas** enforced by a central **Schema Registry** (like Confluent Schema Registry). This ensures that producers cannot publish events that do not conform to the predefined order model.

// Example order model instantiation and production
Properties props = new Properties();
props.put("bootstrap.servers", "localhost:9092");
props.put("key.serializer", "org.apache.kafka.common.serialization.StringSerializer");
props.put("value.serializer", "io.confluent.kafka.serializers.KafkaAvroSerializer");
props.put("schema.registry.url", "http://schema-registry:8081");

KafkaProducer<String, Order> producer = new KafkaProducer<>(props);
Order newOrder = Order.newBuilder()
    .setOrderId("ord-98765")
    .setCustomerId("cust-4321")
    .setAmount(129.99)
    .setStatus("CREATED")
    .build();

producer.send(new ProducerRecord<>("orders", newOrder.getOrderId(), newOrder));

Monitoring and Reliability

In production, ensure you set up alerts for:

  • Consumer Lag: If consumer lag rises on orders-validated, it means payment processing is slowing down and you need to spin up more consumer instances.
  • DLQ Ingestion: A rise in orders-dlq volume means there is a front-end input validation bypass or a major version mismatch between microservices.

Conclusion

By decoupling your order validation, payment, and fulfillment pipelines using Kafka, you build a system that can absorb massive seasonal traffic surges, process payments in a transactionally safe manner, and recover gracefully from microservice crashes.
